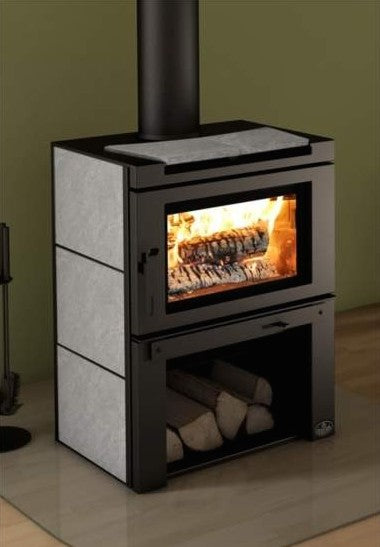

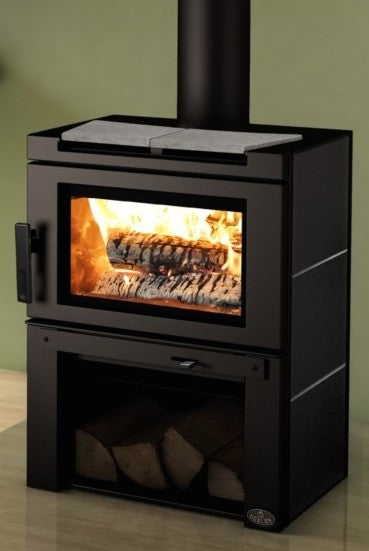

Osburn Matrix Wood Stove with Blower

The Matrix wood stove uses the same engine as the proven Osburn 2000. However, its clean and modern look is sure to bring a European touch to your room. The top of the stove is made of cast iron with two rich pieces of soapstone, which remind us of the renowned Finnish fireplaces.

Optional soapstone side shields are also available. Logs can be conveniently placed underneath the large firebox, making the Matrix a practical and elegant heating machine.

Features:

• Model # : OB02020
• High-efficiency appliance EPA approved
• Recommended Heating Area (sq. ft.) : 750 - 2,100
• Blower included
• Colour: Metallic Black
• Easy-to-access ash drawer
• Glass air-wash system
• Steel thickness (top) : 5/16"
• Optimum efficiency : 77.2%
• Emissions (grams/hour) : 3.89 g/h
• Baffle : High heat-resistant C-cast
• Firebox lined with refractory bricks for better heat distribution
• Stainless-steel secondary-air system improving gas combustion
• Recommended chimney diameter : 6''
• Tested or/and listed as per applicable standards by : Intertek

Specification:

• Firebox Dimensions: 16.5" D x 21" W x 12"
• Maximum Log Length: 20"
• Door Opening Dimensions: 17.5" W x 8.75" H
• Type of Door: Single, glass with cast iron frame
• Glass surface: 19-5/8" x 11-7/8"
• Maximum output - EPA test wood: 32,200 BTU/h
• Maximum output - Seasoned cord wood: 75,000 BTU/h
• Weight: 535 lbs.
• Firebox volume (cu.ft.): 2.4
• Glass Type: Ceramic glass
• Centre line of flue outlet to the back: 6-3/8"
• Centre line of flue outlet to the side: 13.5"
• Canadian Standard (emissions): CSA B415.1
• USA Standard (emissions): EPA
• Canadian Standard (safety): B365 ULC S627 / CSA
• USA Standard (safety): UL 1482 / NFPA 211
• Type of Fuel: Wood
• Type of Chimney (°F): 2100
• Minimum Chimney height (feet): 12
• Log positioning: Over width
• Recommended Heating Area (sq.ft.): 750 - 2,100
• Steel thickness (top): 5/16"
• Optimum efficiency: 77.2%
• Emissions (grams/hour): 3.89 g/h
• Baffle: High heat-resistant C-Cast
• Recommended Chimney Diameter: 6"
• Warranty: Limited Lifetime
• Tested or/and listed as per applicable standards by: Intertek
