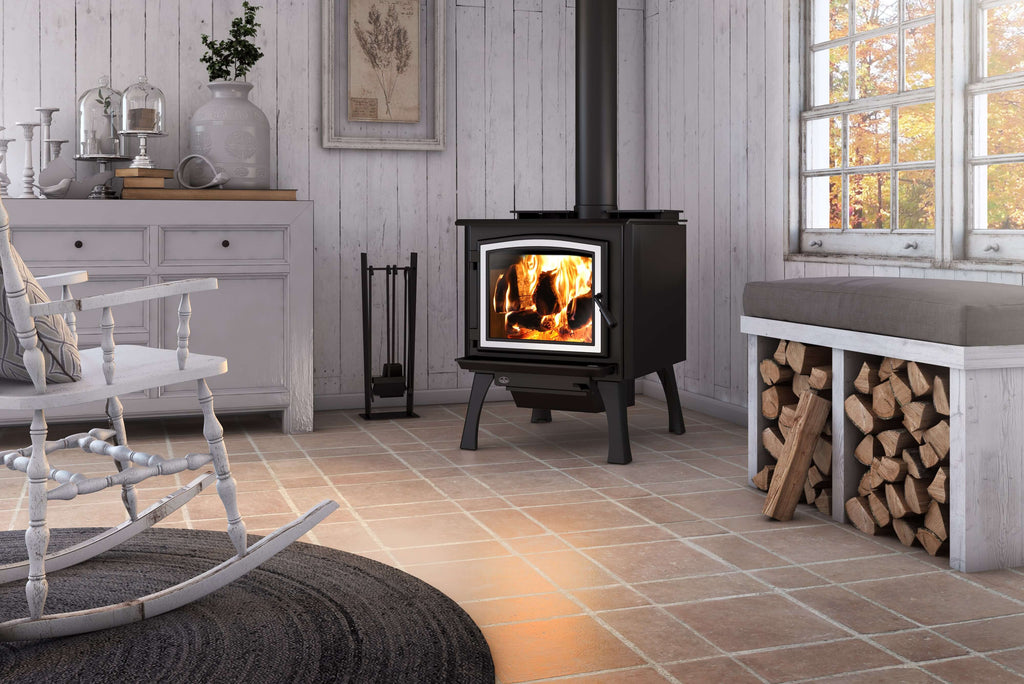

Osburn 3300 Wood Stove


Call 800-665-1411 or submit details below for pricing.

Description

Fuel type : Dry cordwood

Heating area : 900 - 2,300 Ft2

Maximum heat output : 90,000 BTU/h (26.4 kW)

The Osburn 3300 represents the essence of eco-friendly and efficient heating. With an emission rate of 0.95 g/h, this non-catalytic wood stove is among the cleanest on the market and represents an environmentally friendly source of energy. This north-south loading model will keep your family warm all night long, even in very cold weather, thanks to its power of 95,000 BTU/h.

The design of the heater is flawless and enhanced by a set of high density bricks, a C-Cast baffle, a new cast iron door mold, an integrated ash drawer, a top heat deflector as well as decorative side panels.

This new generation wood stove offers a multitude of configuration options. In addition to the traditional or straight legs and the door overlay available in black or brushed silver, you can choose a pedestal, a rigid spark arrester, a blower with thermodisc and a glass ash lip according to your needs. Let yourself be inspired and reinvent your interior comfort!

GENERAL FEATURES:

  • Combustion technology Non-catalytic
  • High-efficiency certified appliance Yes, EPA 2020 approved
  • Maximum log length 20"
  • Log positioning Over depth
  • Chimney diameter 6"
  • Flue outlet diameter 6"
  • Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
  • Minimum chimney height (feet) 15'
  • Baffle type C-Cast
  • Approved for an alcove installation Yes
  • Approved for a mobile home installation Yes, with fresh air intake
  • Shipping Weight 465 lb
  • Door type Single, glass with cast iron frame
  • Glass type Ceramic glass
  • Glass surface – dimensions (Width X Height) 14 1/2" X 11 5/8"
  • Glass air-wash system Yes
  • Overall dimension (Height) 34"
  • Overall dimension (Width) 24 1/4"
  • Overall dimension (Depth) 30 1/2"
  • Door opening – dimension (Height) 12"
  • Door opening - dimension (Width) 16"
  • Firebox – dimension (Height) 14 1/8"
  • Firebox – dimension (Width) 19"
  • Firebox – dimension (Depth) 21"
  • Firebox lined with refractory bricks for better heat distribution Yes
  • Stainless-steel secondary-air system improving gas combustion Yes
  • Steel thickness – body 3/16"
  • Steel thickness – top 5/16"
  • USA standard (emissions) EPA
  • Canadian Standard (emissions) CSA B415.1-10
  • USA standard (safety) UL 1482, UL 737
  • Canadian standard (safety) ULC S627
  • Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
  • Warranty Limited lifetime

APPLIANCE PERFORMANCE

  • Fuel type : Dry cordwood
  • Recommended heating area-ft² : 900 - 2,300
  • Overall firebox volume : 3.3
  • EPA loading volume-ft³ : 2.67
  • Maximum burn time : 10 h
  • Maximum heat output (dry cordwood) : 90,000 BTU/h (26.4 kW)
  • Overall heat output rate < : 15,841 BTU/h (4.64 kW) to 57,041 BTU/h (16.72 kW)
  • Average overall efficiency (EPA cribs/Douglas fir) : N.A. (HHV) N.A. (LHV)
  • Average overall efficiency (dry cordwood) : 71.1 % (HHV) 76.6 % (LHV)
  • Optimum efficiency : 78 %
  • Average particulate emissions rate : 0.95 g/h
  • Average CO :61.3 g/h
