Multi-Zone Ductless Splits


Call 800-665-1411 or submit details below for pricing.

Description

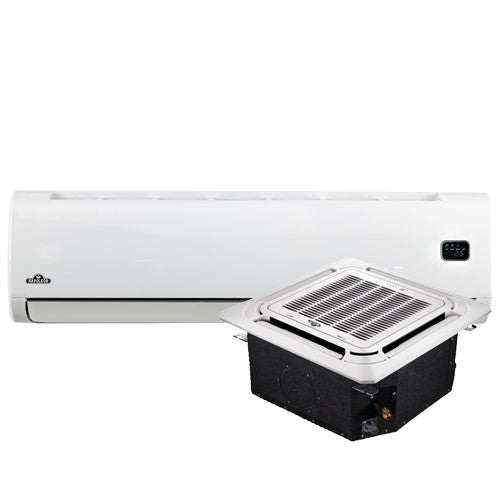

Operates up to four indoor units to fully equip your home or office building for long lasting comfort. Choose from wall mount or cassette style models.

A cassette style ductless system operates just like a wall mount type with one outdoor unit operating one to four indoor units. The difference is the design of the indoor air handler. The cassette model is installed into a ceiling rather than mounted on an interior wall, and installs flush with the ceiling to ensure the most clean, streamlined finish. Both can be mixed and matched to suit the required layout.

  • 9,000 BTU to 18,000 BTU models of heating and cooling capacity.
  • Outdoor unit range from 27,000 to 36,000 BTU models to operate up to four indoor models.
  • EER (Energy Efficiency Ratio) range from 12 to 12.4 in the series.
  • Environmentally friendly R-410A refrigerant.
  • WHISPER QUIET™ operation with an indoor sound rating as low as 32 dB and the outdoor unit as low as 60 dB. See the brochure for noise levels of each model.
  • Easy to use remote control thermostat, controls all functions of the indoor unit.
  • Air filtration, filter helps clean volatile organic compounds (VOC’s) and harmful gasses and odours. Consistently provides healthy air. (NMH1 Models Only)
  • Improved efficiency, a multi-bend evaporator within the indoor unit helps increase heat exchange surface, in turn improving efficiency. (NMH1 Models Only)
  • Auto restart, if the air conditioner turns off unexpectedly due to power failure, it will restart with the previous function setting automatically, once power is restored.
  • Turbo operation, will maximize the output of cooling or heating capacity and make the room heat up or cool down rapidly and attain the desired temperature in the shortest time. (NMH1 Models Only)
  • Sleep mode, Maintain energy savings and comfort in night operation. Automatically increases cooling or decreases heating 1˚ C (1.8 ° F) per hour for the first two hours and then maintains temperature for the next five hours until it shuts off.
  • Auto swing, distributes air to the farthest reaches of your home by automatically moving the blades. (NMH1 Models Only)
  • Easy clean panel, front panel of indoor unit is detachable for easy cleaning.(NMH1 Models Only)
  • PTC heating belt, a heating belt is fitted on the base plate of the outdoor unit to avoid accumulation of rain, snow or water on the base plate. Outdoor unit must be installed 2 ft. above ground. (NMH1 Models Only)
  • DC inverter, high efficiency for lower fuel bills. Superior operation drastically reduces noise.
  • LED display, the flat panel LED display window illuminates the temperature for easy reading. It reads in Celsius or Fahrenheit. (NMH1 Models Only)
  • Low ambient cooling, this allows the air conditioner to be used in outside temperatures as low as 15˚ C (34°F)
  • This feature prevents the evaporator from freezing and will prolong the life of the product and save energy.
  • Different from the cooling operation, the independent dehumidification mode efficiently removes humidity from the space without lowering the temperature.
  • When the heat mode is started the fan speed is automatically regulated from the lowest level to the preset level according to the temperature rising of the evaporator. This prevents a blast of cold air being released upon start up.
  • On Cassette models the built-in drain pump lifts the condensing water 750mm.
  • A temperature sensor is built-in the remote control so when you stay close to the remote, the unit will automatically change the operation mode to supply the desired temperature, just as if the unit is following you

Remote Control System

The remote control allows the positioning of the air handling unit high on a wall or suspended from a ceiling, without compromising convenience and puts you in full control. Functions such as the Auto Swing distributes the hot or cold air to the farthest reaches of your home just by the push of a button. Even check the temperature in your home without getting up to look at the thermostat. Convenience and comfort all at your finger tips.
