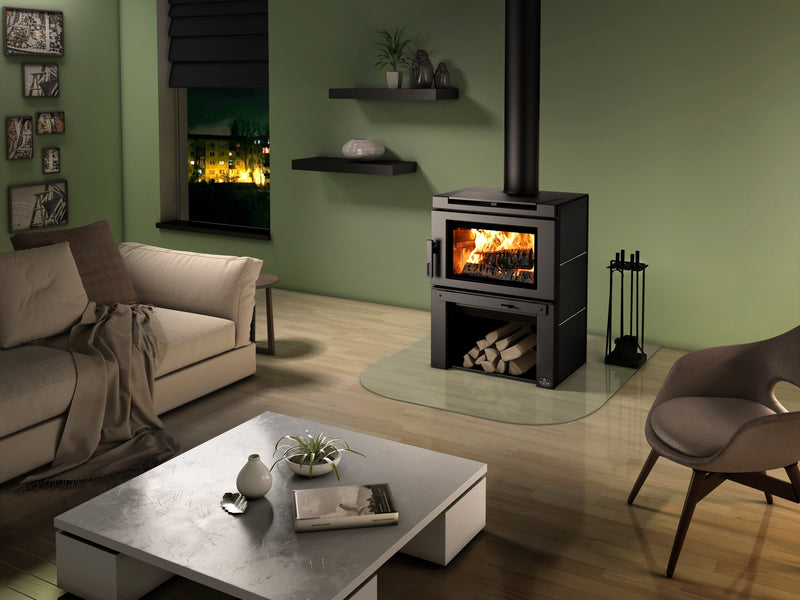

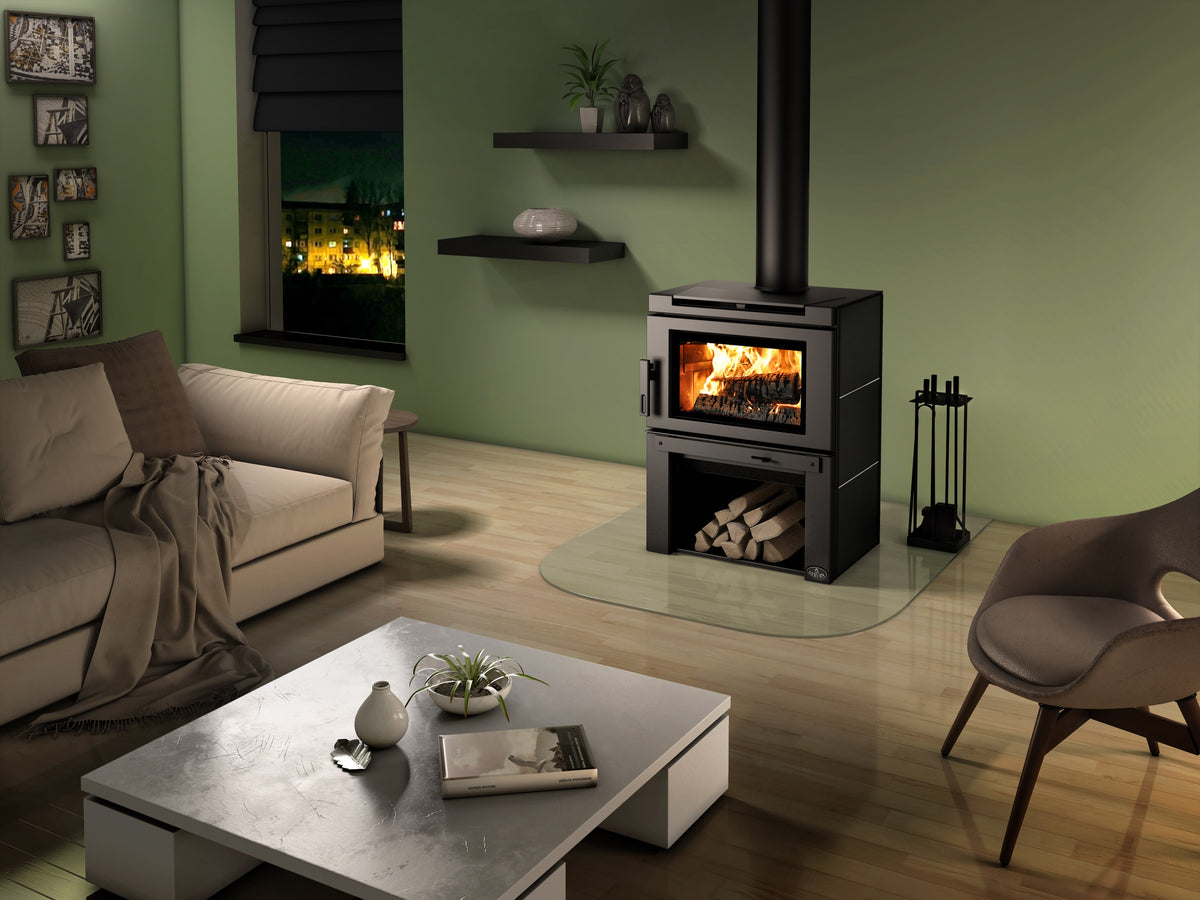

Matrix Wood Stove with Blower


Call 800-665-1411 or submit details below for pricing.

Description

With the same sleek, modern style and vastly improved performance, the Matrix wood burning stove will certainly bring a European touch to your home. Let the Matrix wood stove provided you the warmth, safety and coziness needed during these cold winters

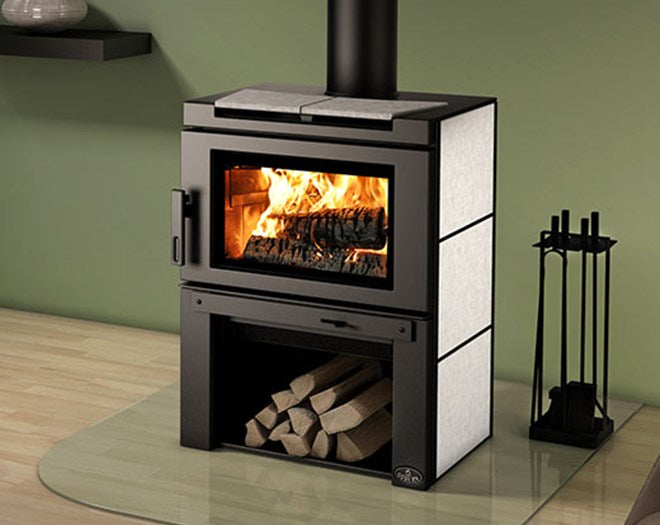

You can now personalize your device with the steel or soapstone top and side panel options from a local Quebec City mine, reminding us of the richness of our natural resources. Logs will easily fit under the large firebox, making the Matrix a practical and stylish heater. The Matrix is equipped with a 130 CFM fan to ensure optimal heat distribution. Enjoy the comfort of winter more than ever before!

Appliance Performance

Fuel type : Dry cordwood
Recommended heating area-ft² : () 500 - 2,100
Overall firebox volume : 2.4
EPA loading volume-ft³ : 2.02
Maximum burn time : () 8 h
Maximum heat output (dry cordwood) :  75,000 BTU/h (22.0 kW)
Overall heat output rate < :  14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)
Average overall efficiency (EPA cribs/Douglas fir) : N.A. (HHV) N.A. (LHV)
Average overall efficiency (dry cordwood) :  69 % (HHV) 74 % (LHV)
Optimum efficiency :  77 %
Average particulate emissions rate : 1.54 g/h
Average CO : 89.4 g/h

General Features

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 20"
Log positioning Loading over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) 12'
Baffle type C-Cast
Approved for an alcove installation Yes
Approved for a mobile home installation Yes, with fresh air intake
Shipping Weight 506 lb (230 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 19 5/8" x 11 7/8"
Glass air-wash system Yes
Premium quality blower included (CFM) 130
Overall dimension (Height) 36 7/8"
Overall dimension (Width) 27 1/8"
Overall dimension (Depth) 25"
Door opening – dimension (Height) 8 3/4"
Door opening - dimension (Width) 17 1/2"
Firebox – dimension (Height) 11 7/8"
Firebox – dimension (Width) 21"
Firebox – dimension (Depth) 16 1/2"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Model Pedestal
Steel thickness – body 3/16"
Steel thickness – top 5/16"
USA standard (emissions) EPA
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC-S627
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
