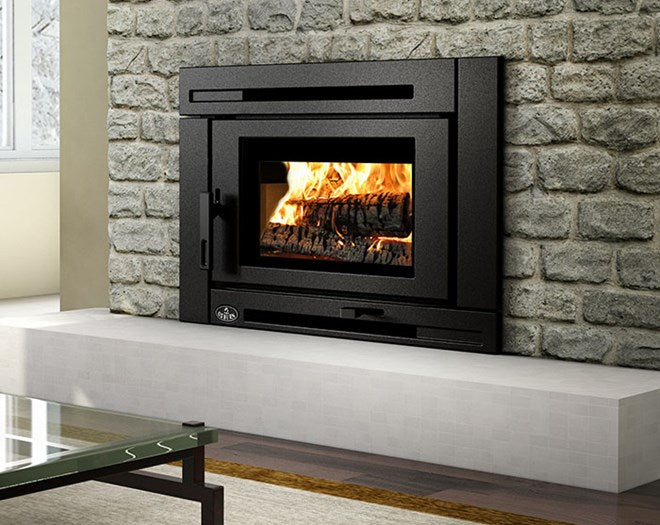

Matrix Wood Insert


Call 800-665-1411 or submit details below for pricing.

Description

This updated version of the Matrix wood insert will seduce you with an average particle emission rate as low as 1.54 g/h. The latest modifications made to this box are well in tune with the industry standards required for 2020. Although it retains a unique style that is both massive and sleek, we have reviewed the door mechanism to make it more functional. Adding a set of intermediate trim panels may be required to complete your masonry hearth. Always the same legendary Osburn quality.

Appliance Performance

Fuel type : Dry cordwood
Recommended heating area-ft² : () 500 - 2,100
Overall firebox volume : 2.4
EPA loading volume-ft³ : 2.02
Maximum burn time : () 8 h
Maximum heat output (dry cordwood) :  75,000 BTU/h (22.0 kW)
Overall heat output rate < : 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)
Average overall efficiency (EPA cribs/Douglas fir) : N.A. (HHV)  N.A. (LHV)
Average overall efficiency (dry cordwood) : 69 % (HHV) 74 % (LHV)
Optimum efficiency : 77 %
Average particulate emissions rate : 1.54 g/h
Average CO : 89.4 g/h

General Features

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 20"
Log positioning Loading over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet) 12'
Baffle type C-Cast
Approved for a mobile home installation No
Shipping Weight 484 lb (220 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 19 5/8" X 11 7/8"
Glass air-wash system Yes
Premium quality blower included (CFM) 90
Overall dimension (Height) 25 1/8"
Overall dimension (Width) 36 1/8"
Overall dimension (Depth) 23 1/8"
Door opening – dimension (Height) 8 3/4"
Door opening - dimension (Width) 17 1/2"
Firebox – dimension (Height) 11 7/8"
Firebox – dimension (Width) 21"
Firebox – dimension (Depth) 16 3/4"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Steel thickness – body 3/16"
Steel thickness – top 5/16"
Fireplace opening – minimum (Height) 23 5/16"
Fireplace opening – minimum (Width) 28 7/8"
Fireplace opening – minimum (Depth) 19 5/8"
USA standard (emissions) EPA / ASTM WK47329
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC S628
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
