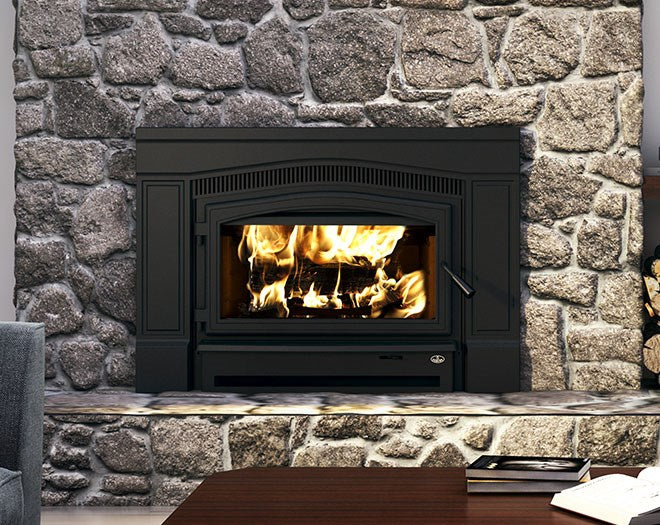

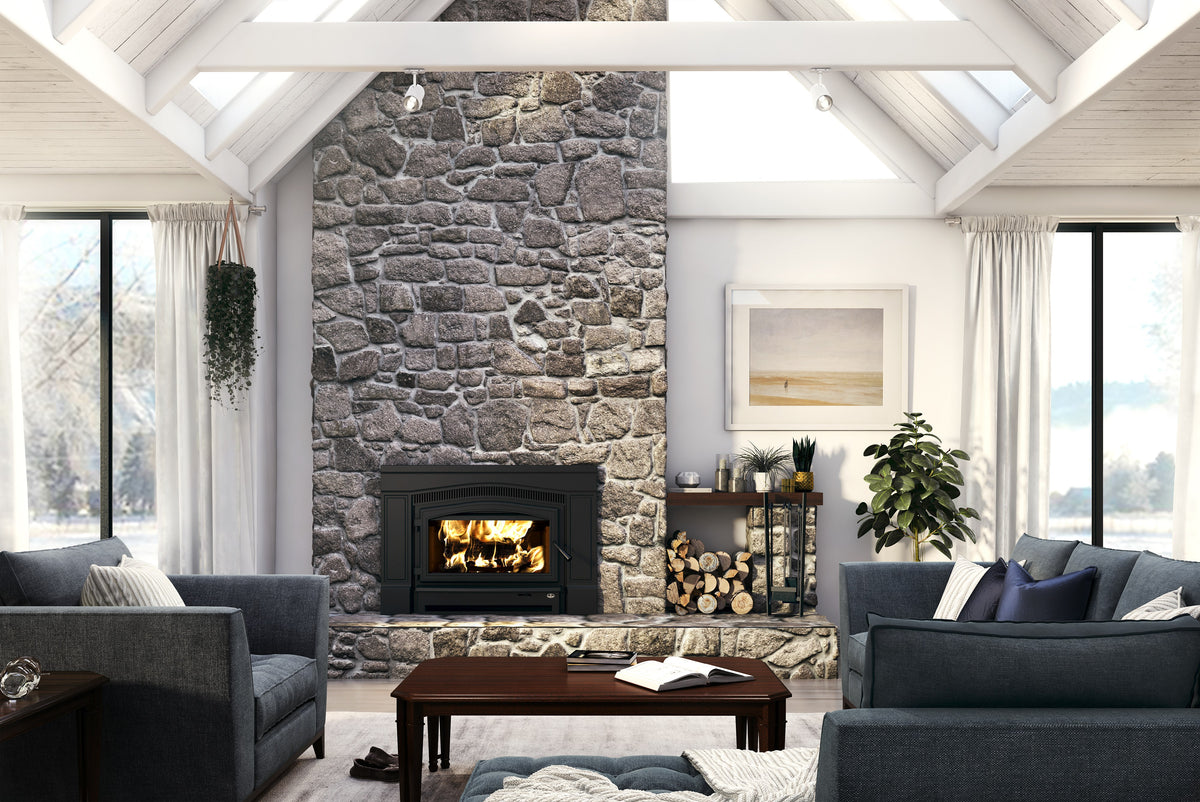

Matrix 2700 Wood Insert


Call 800-665-1411 or submit details below for pricing.

Description

Inspired by nature, the Matrix 2700 insert is a fusion of traditional style and technological innovation. Located in the heart of your living space, the generous viewing area of the Matrix 2700 will invite you to sit back, relax and take in the calm and warmth of its flames. Eco-savvy consumers will appreciate its efficient combustion, quality performance and classic beauty.

This unit comes standard with cast iron faceplate and heat activated blower. Customize the look of this non-catalytic appliance by choosing from a black or brushed silver-plated door overlay and fire screen.

Appliance Performance

Fuel type : Dry cordwood
Recommended heating area-ft² : () 750 - 2,200
Overall firebox volume : 2.5
EPA loading volume-ft³ : 1.69
Maximum burn time : () 8 h
Maximum heat output (dry cordwood) : 80,000 BTU/h (23.4 kW)
Overall heat output rate < : 14,200 BTU/h (4.16 kW) to 48,200 BTU/h (14.13 kW)
Average overall efficiency (EPA cribs/Douglas fir) : N.A. (HHV) N.A. (LHV)
Average overall efficiency (dry cordwood) : 68 % (HHV) 73 % (LHV)
Optimum efficiency : 74 %
Average particulate emissions rate : 1.14 g/h
Average CO : 53 g/h

General Features

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 20"
Log positioning Loading over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet) 15'
Baffle type C-Cast
Approved for a mobile home installation No
Shipping Weight 535 lb (243kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 24 3/8" X 12 5/8"
Glass air-wash system Yes
Premium quality blower included (CFM) 176
Overall dimension (Height) 30 1/8"
Overall dimension (Width) 43 5/8"
Overall dimension (Depth) 27 1/4"
Door opening – dimension (Height) 10 1/2"
Door opening - dimension (Width) 25 3/8"
Firebox – dimension (Height) 12 3/8"
Firebox – dimension (Width) 22 5/8"
Firebox – dimension (Depth) 12 7/8"
Moulded refractory bricks Yes
Stainless-steel secondary-air system improving gas combustion Yes
Adjustable threaded legs Yes
Fireplace opening – minimum (Height) 27 1/8"
Fireplace opening – minimum (Width) 31 3/4"
Fireplace opening – minimum (Depth) 22 1/8"
USA standard (emissions) EPA
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC S628
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
