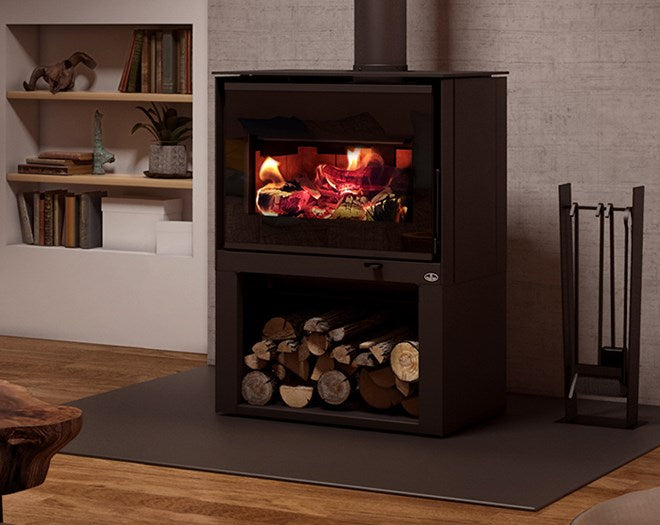

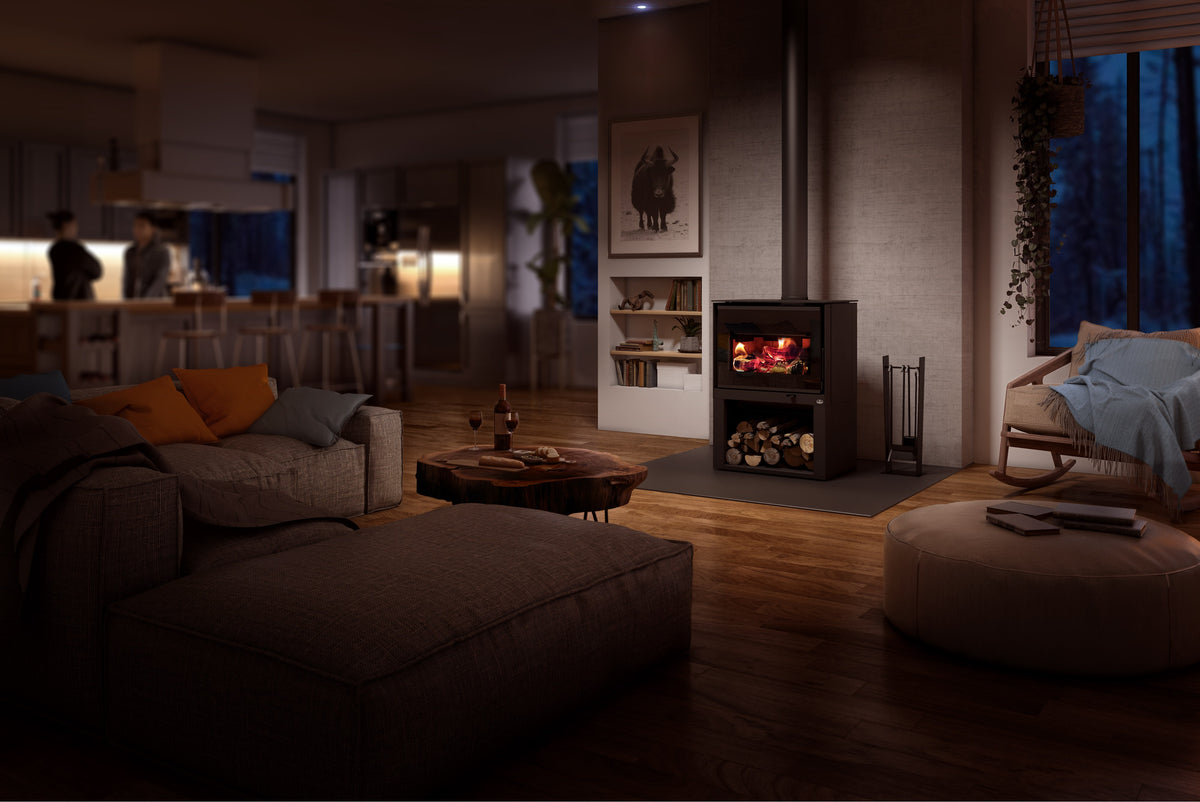

Inspire 2000 Wood Stove


Call 800-665-1411 or submit details below for pricing.

Get Pre-Approved Financing In Less than 5 Minutes


Example apply modal

Description

Are you interested in getting off the beaten path? The Inspire offers a style that will surely withstand variable trends with these pure lines of balanced proportions, allowing the brand  Osburn to easily compare to European-style products. This more contemporary look is available on steel base, soapstone or even a minimalist base for those who prefer to place the unit directly on a non-combustible podium. Equipped with a 2.3 cubic feet firebox and an outside air intake, this unit will meet the requirements of domestic energy standards, not to mention that a mobile home installation is permitted.

 The Inspire largely meets EPA requirements with emissions as low as 1.54 g/h and complies with the most stringent North American requirements. A guarantee of quality, reliability and durability, once again Osburn clearly demonstrates its firm commitment to the environment to the delight of wood heating fans.

Appliance Performance

Fuel type : Dry cordwood
Recommended heating area-ft² : () 500 - 2,100
Overall firebox volume : 2.4
EPA loading volume-ft³ : 2.02
Maximum burn time : () 8 h
Maximum heat output (dry cordwood) : 75,000 BTU/h (22.0 kW)
Overall heat output rate < : 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)
Average overall efficiency (EPA cribs/Douglas fir) : N.A. (HHV) N.A. (LHV)
Average overall efficiency (dry cordwood) :  69% (HHV) 74 % (LHV)
Optimum efficiency :  77 %
Average particulate emissions rate : 1.54 g/h
Average CO : 89.4 g/h

General Features

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 20"
Log positioning Loading over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) 12'
Baffle type C-Cast
Approved for an alcove installation Yes
Approved for a mobile home installation Yes, with fresh air intake
Shipping Weight 537 lb (244 kg)
Door type Single, glass with steel frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 20 1/4" X 9 1/2"
Glass air-wash system Yes
Overall dimension (Height) 36 9/16"
Overall dimension (Width) 27 7/8"
Overall dimension (Depth) 24 15/16"
Door opening – dimension (Height) 8 3/8"
Door opening - dimension (Width) 20"
Firebox – dimension (Height) 11 15/16"
Firebox – dimension (Width) 21 1/4"
Firebox – dimension (Depth) 17 11/16"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Model Pedestal
Steel thickness – body 3/16"
Steel thickness – top 5/16"
Easy-to-access ash drawer Yes
USA standard (emissions) EPA Method 28
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC S627
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
