Inspire 2000 Wood Insert


Call 800-665-1411 or submit details below for pricing.

Description

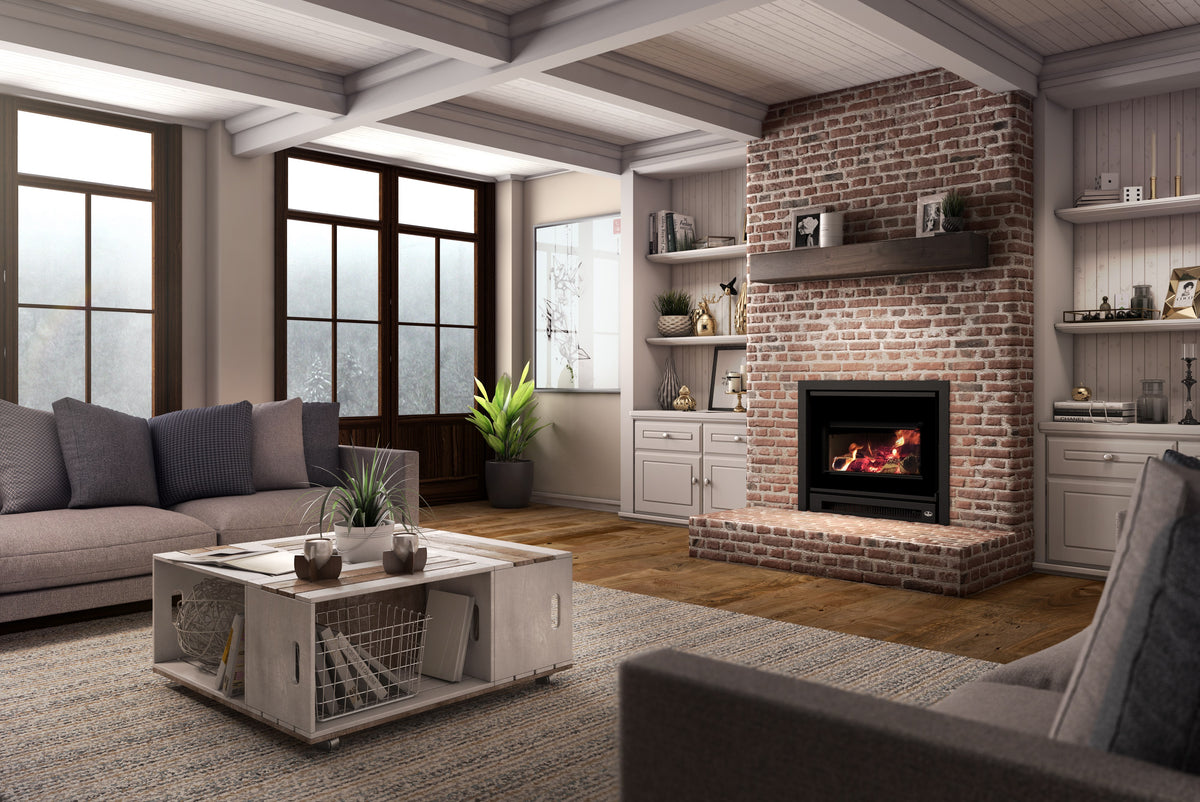

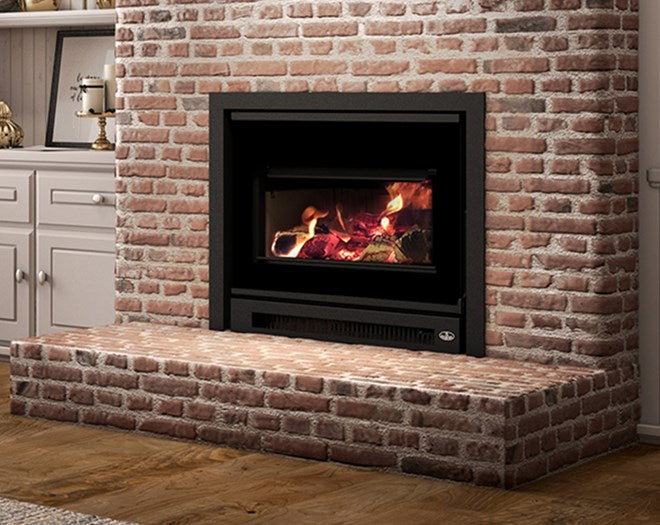

This wood insert will bring an unmatched modernism to your decor, in addition to perfectly combining functionality and comfort. The impeccable lines display a timeless style while guaranteeing reliability and durability.

Whether you want to enjoy a broad view of the flames in the comfort of your living room during a romantic evening or simply to benefit from impressive heat in cold weather, the Inspire will charm you as much by its aesthetics as its 77% optimal performance . With its particle emission rate as low as 1.54 g/h and its high-performance combustion system, environmentalists have never been as happy with wood heating. The Inspire Collection celebrates our past and embraces our future as our team is committed more than ever to our industry's contribution to sustainability . A dream opportunity on the latest trends!

Appliance Performance

Fuel type : Dry cordwood
Recommended heating area-ft² : () 500 - 2,100
Overall firebox volume : 2.4
EPA loading volume-ft³ : 2.02
Maximum burn time : () 8 h
Maximum heat output (dry cordwood) : 75,000 BTU/h (22 kW)
Overall heat output rate < : 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW))
Average overall efficiency (EPA cribs/Douglas fir) : N.A. (HHV) N.A. (LHV)
Average overall efficiency (dry cordwood) : 69 % (HHV) 74 % (LHV)
Optimum efficiency : 77 %
Average particulate emissions rate : 1.54 g/h
Average CO : 89.4 g/h

General Features

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 20"
Log positioning Loading over width
Chimney diameter 6"
Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet) 12'
Baffle type C-Cast
Approved for a mobile home installation No
Shipping Weight 420 lb (191 kg)
Door type Single, glass with steel frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 24 13/16" X 18 1/2"
Glass air-wash system Yes
Premium quality blower included (CFM) 176
Overall dimension (Height) 24"
Overall dimension (Width) 28 1/2"
Overall dimension (Depth) 20 3/4"
Door opening – dimension (Height) 8 1/4"
Door opening - dimension (Width) 20"
Firebox – dimension (Height) 11 3/4"
Firebox – dimension (Width) 21"
Firebox – dimension (Depth) 16 3/4"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Steel thickness – body 3/16"
Steel thickness – top 3/8"
Fireplace opening – minimum (Height) 24 5/8"
Fireplace opening – minimum (Width) 29"
Fireplace opening – minimum (Depth) 20 3/4"
USA standard (emissions) EPA Method 28
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC S628
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
