3500 Wood Insert


Call 800-665-1411 or submit details below for pricing.

Description

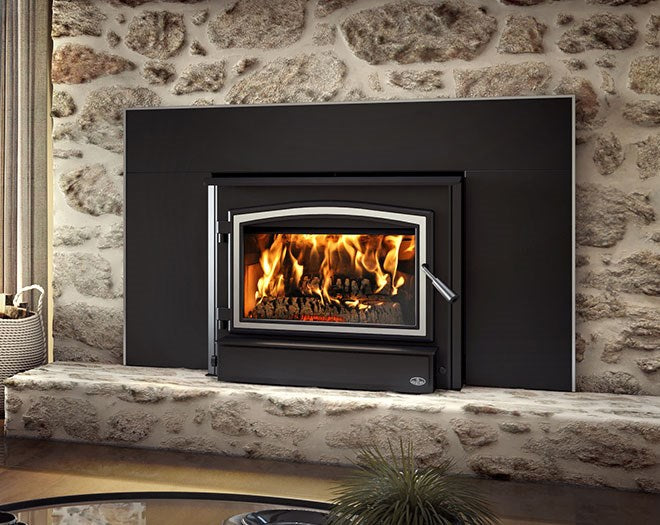

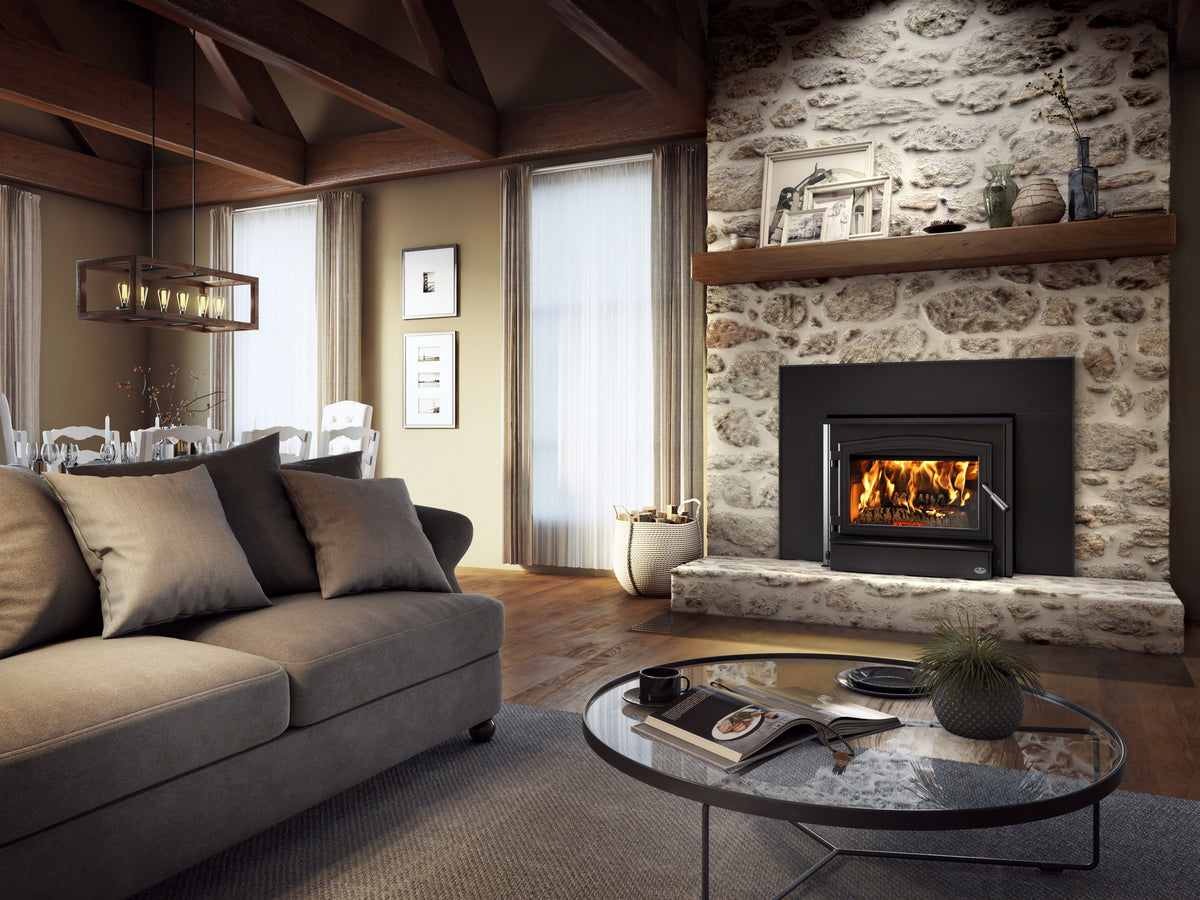

The Osburn 3500 wood insert combines power, efficiency and safety. With its amazing features and sober lines that give way to one of the largest glass surfaces in its category, this insert will blend perfectly with the architecture of your home. Its flawless design reveals all the Canadian know-how in terms of alternative heating and will quickly become the house favorite. No harsh winter can resist it!

Because each house is unique, choose the door overlay, the faceplate and the trims that suit you!

Appliance Performance

Fuel type : Dry cordwood
Recommended heating area-ft² : () 1,000 - 2,700
Overall firebox volume : 3.5
EPA loading volume-ft³ : 2.84
Maximum burn time : () 10 h
Maximum heat output (dry cordwood) : 110,000 BTU/h (32.2 kW)
Overall heat output rate < : 18,100 BTU/h (5.3 kW) to 49,500 BTU/h (14.5 kW)
Average overall efficiency (EPA cribs/Douglas fir) : N.A. (HHV) N.A. (LHV)
Average overall efficiency (dry cordwood) : 71 % (HHV)  76 % (LHV)
Optimum efficiency : 77 %
Average particulate emissions rate : 1.32 g/h
Average CO : 92 g/h

General Features

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 22"
Log positioning Loading over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet) 15'
Baffle type C-Cast
Approved for a mobile home installation No
Shipping Weight 540 lb (245 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 18 7/8" X 11 3/4"
Glass air-wash system Yes
Premium quality blower included (CFM) 144
Overall dimension (Height) 24 7/8"
Overall dimension (Width) 30 3/8"
Overall dimension (Depth) 29"
Door opening – dimension (Height) 9 7/8"
Door opening - dimension (Width) 19"
Firebox – dimension (Height) 12 7/8"
Firebox – dimension (Width) 22 7/8"
Firebox – dimension (Depth) 20 1/8"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Steel thickness – body 3/16"
Steel thickness – top 3/8"
Fireplace opening – minimum (Height) 26 1/4"
Fireplace opening – minimum (Width) 31"
Fireplace opening – minimum (Depth) 18 3/8"
USA standard (emissions) EPA
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC S628
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
