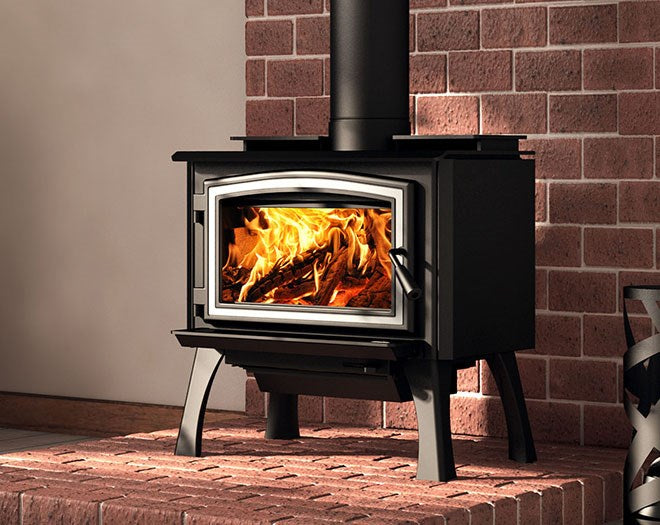

Designed to meet the needs of smaller spaces, the Osburn 1700 combines robustness and elegance to allow you to enjoy your heating experience with confidence. This unit is equipped with high-density bricks, a cast iron door, a built-in ash pan, a top heat deflector that redirects heat to the front of the unit, and side panels to reduce its clearances.

Choose your favorite version by customizing the unit to suit your style: refined door overlays, new leg designs, glass ash lip; significant innovations for the most seasoned experts. Exceeding air quality regulations with emissions as low as 1.26 g/h, the Osburn 1700's efficiency will save you time and money.

Appliance Performance

Fuel type : Dry cordwood
Recommended heating area-ft² : () 500 - 1,800
Overall firebox volume : 1.9
EPA loading volume-ft³ : 1.44
Maximum burn time : () 6 h
Maximum heat output (dry cordwood) :  65,000 BTU/h (19 kW)
Overall heat output rate < :  15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW)
Average overall efficiency (EPA cribs/Douglas fir) : N.A. (HHV) N.A. (LHV)
Average overall efficiency (dry cordwood) : 70 % (HHV) 75 % (LHV)
Optimum efficiency :  78 %
Average particulate emissions rate : 1.26 g/h
Average CO : 58 g/h

General Features

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 18"
Log positioning Loading over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) 15'
Baffle type C-Cast
Approved for an alcove installation Yes
Approved for a mobile home installation Yes, with fresh air intake
Shipping Weight 331 lb (150 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 15 3/4" x 9 3/8"
Glass air-wash system Yes
Overall dimension (Height) 30 3/8"
Overall dimension (Width) 24 7/8"
Overall dimension (Depth) 23 1/4"
Door opening – dimension (Height) 8 3/4"
Door opening - dimension (Width) 17 1/4"
Firebox – dimension (Height) 11 7/8"
Firebox – dimension (Width) 19 5/8"
Firebox – dimension (Depth) 13 1/2"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Steel thickness – body 3/16"
Steel thickness – top 5/16"
USA standard (emissions) EPA
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC S627
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
