The Manoir is the updated version of Valcourt’s very first fireplace. The seel framed double doors and ceramic glass are second to none; they slide effortlessly and without special tools into each side of the fireplace, allowing for an exceptional view of the crackling flames.

This fireplace will allow you to be creative when designing your decor thanks to its facade options available in different finishes. In addition, you will benefit from the maximum heat of the Manor thanks to its included fan and the heat distribution options (forced air or gravity).

GENERAL FEATURES:

Fuel type : Dry cordwood
Recommended heating area-ft² : <1,500
Overall firebox volume : 4.25
Average particulate emissions rate : 2.9 g/kg
Burn rate : >>5 kg/h (>11 lb/h)
High-efficiency certified appliance : Low Mass
Maximum log length : 20"
Log positioning : Over width
Chimney diameter : 8"
Type of chimney : CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) : 15'
Approved for a mobile home installation : No
Shipping Weight : 520 lb (236 kg)
Door type : Double, glass with steel frame
Glass type : Ceramic glass
Glass surface – dimensions (Width X Height) : 29" X 17 1/4"
Premium quality blower included (CFM) : 176
Overall dimension (Height) : 43 5/8"
Overall dimension (Width) : 41 1/8"
Overall dimension (Depth) : 27 3/8"
Door opening – dimension (Height) : 17 7/8"
Door opening - dimension (Width) : 30"
Firebox – dimension (Height) : 18 5/8"
Firebox – dimension (Width) : 23 3/8"
Firebox – dimension (Depth) : 11 3/8"
Moulded refractory bricks : Yes
Cast iron andirons : Yes
USA standard (emissions) : ASTM 2515, ASTM 2558
USA standard (safety) : UL 127
Canadian standard (safety) : ULC-S610
Warranty : Limited lifetime

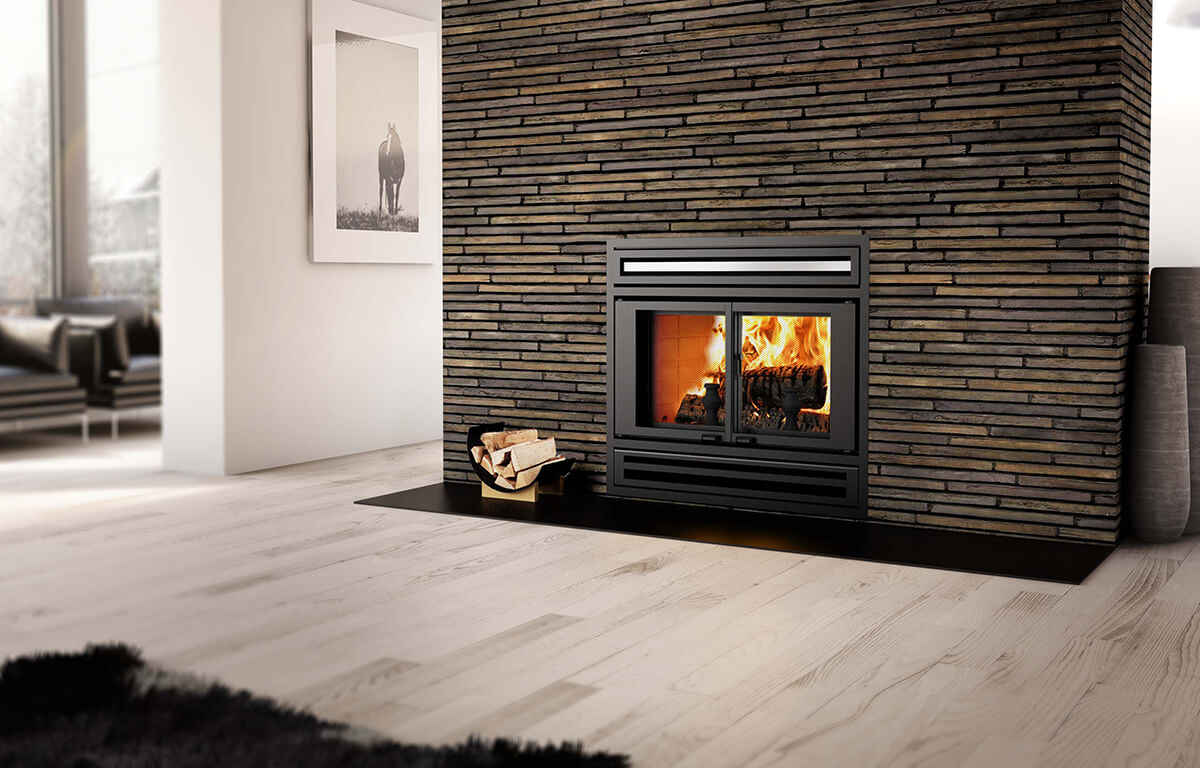

Valcourtinc FP1lm Manoir - Wood Fireplace
