2000 Wood Insert
2000 Wood Insert
2000 Wood Insert
2000 Wood Insert

2000 Wood Insert


Regular price Call for Pricing


/

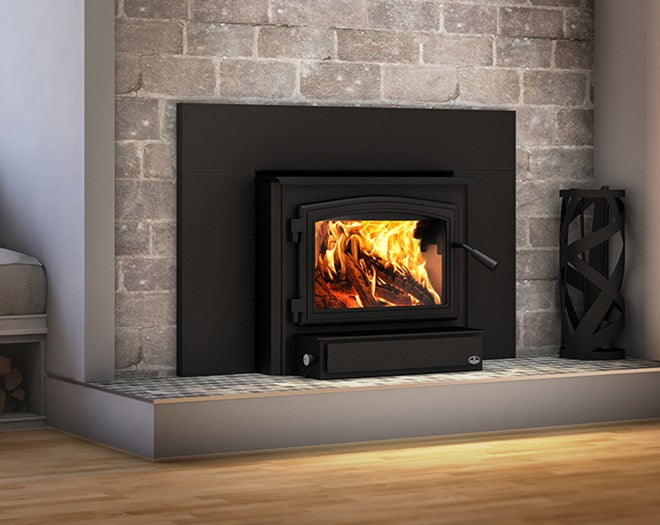

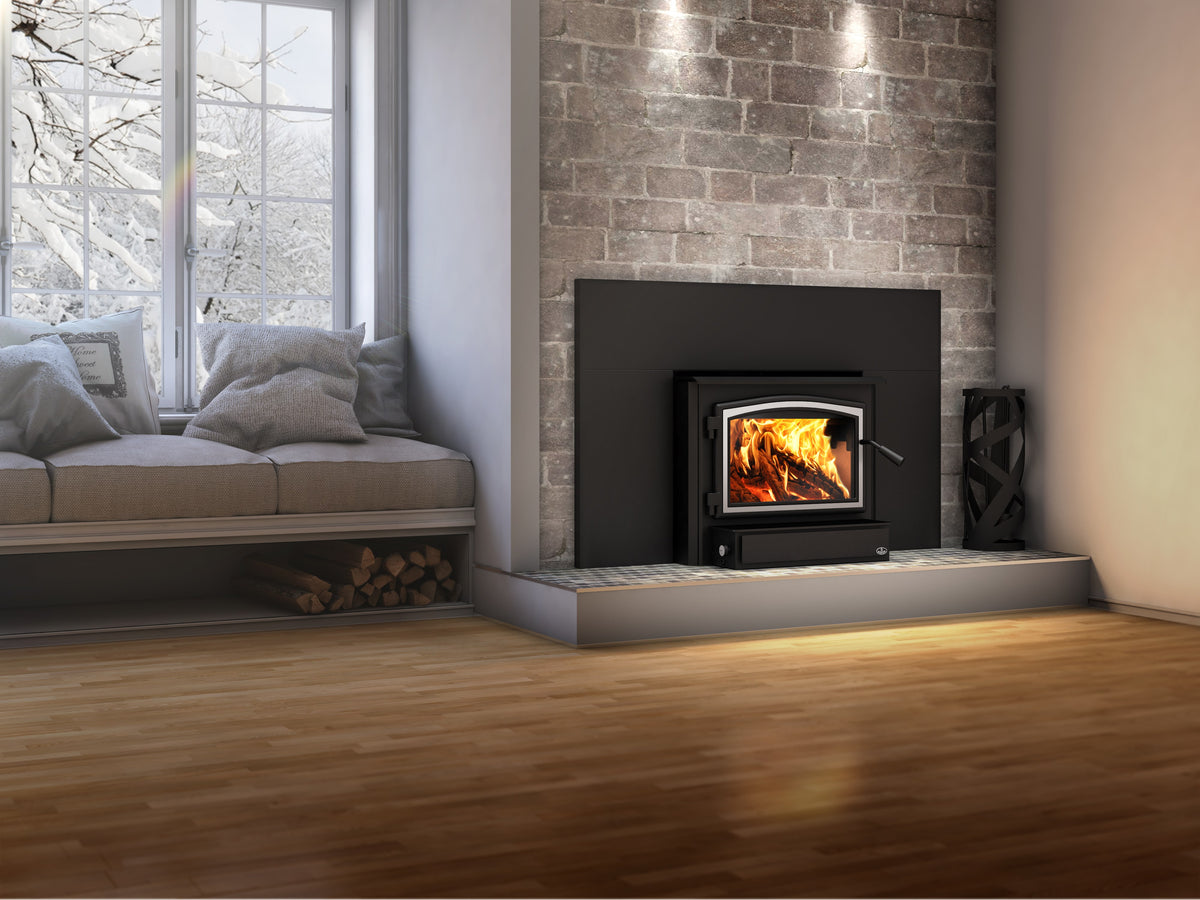

The new standard lowering the fine particulate emission threshold will be conquered by the recent certification of the Osburn 2000 wood burning stove. This revamped version now offers an incredibly low average particulate emissions rate of only 1.54 g/h, a maximum heat output of 75,000 BTU/h and 77% optimum efficiency. This insert still has a  2.4 ft3 combustion chamber and a 144-CFM ultra-quiet variable speed fan that is strategically positioned to redistribute heat throughout the room.

Designed to receive an optional faceplate that can cover a masonry hearth up to 32 inches (81 cm) high and 50 inches (127 cm) wide. A steel door overlay is available in black or brushed nickel as well as faceplate trims. Look no further, treat yourself to Osburn's legendary quality!

Appliance Performance

Fuel type : Dry cordwood
Recommended heating area-ft² : () 500 - 2,100
Overall firebox volume : 2.4
EPA loading volume-ft³ : 2.02
Maximum burn time : () 8 h
Maximum heat output (dry cordwood) : 75,000 BTU/h (22.0 kW)
Overall heat output rate < : 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)
Average overall efficiency (EPA cribs/Douglas fir) : N.A (HHV) N.A (LHV)
Average overall efficiency (dry cordwood) : 69 % (HHV) 74 % (LHV)
Optimum efficiency : 77 %
Average particulate emissions rate : 1.54 g/h
Average CO :  89.4 g/h

General Features

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 20"
Log positioning Loading over width
Chimney diameter 6"
Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777
Baffle type C-Cast
Approved for a mobile home installation No
Shipping Weight 407 lb (185 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 17 1/8" X 10 1/4"
Glass air-wash system Yes
Premium quality blower included (CFM) 120
Overall dimension (Height) 23 1/8"
Overall dimension (Width) 28 3/8"
Overall dimension (Depth) 26 3/8"
Door opening – dimension (Height) 9"
Door opening - dimension (Width) 17 1/2"
Firebox – dimension (Height) 11 7/8"
Firebox – dimension (Width) 21"
Firebox – dimension (Depth) 16 3/4"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Adjustable threaded legs Yes
Steel thickness – body 3/16"
Steel thickness – top 5/16"
Fireplace opening – minimum (Height) 23 3/8"
Fireplace opening – minimum (Width) 28 7/8"
Fireplace opening – minimum (Depth) 15 3/4"
USA standard (emissions) Comply with EPA 2020
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC S628
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
